Compact Power DistributorBSV 3 LS E/16 2 IP44 1m H07RN-F 5G1.5 3xCEE400V + 3x230V
Beskrivning
Beskrivning
- Splash-proof housing made of a special rubber compound for continuous use.
- Extremely robust, impact-resistant, resistant to ageing and weathering.
- Resistant to various oils, greases, petrol and acids, UV and ozone radiation.
- Temperature resistance of the housing -30 °C to +80 °C.
- Quality sockets in accordance with VDE 0620-2-1.
- Sturdy metal carrying handle.
- Oil-resistant rubber cable for permanent outdoor use.
- 3 protective contact sockets 230 V with self-closing lids.
Tekniska data
Tekniska data
- Height: 17 cm
- Length: 26 cm
- Weight: 1,75 kg
- Width: 26 cm
- Max. electr. load capacity: 11000 W
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total: 3
- Number of socket outlets total: 6
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes

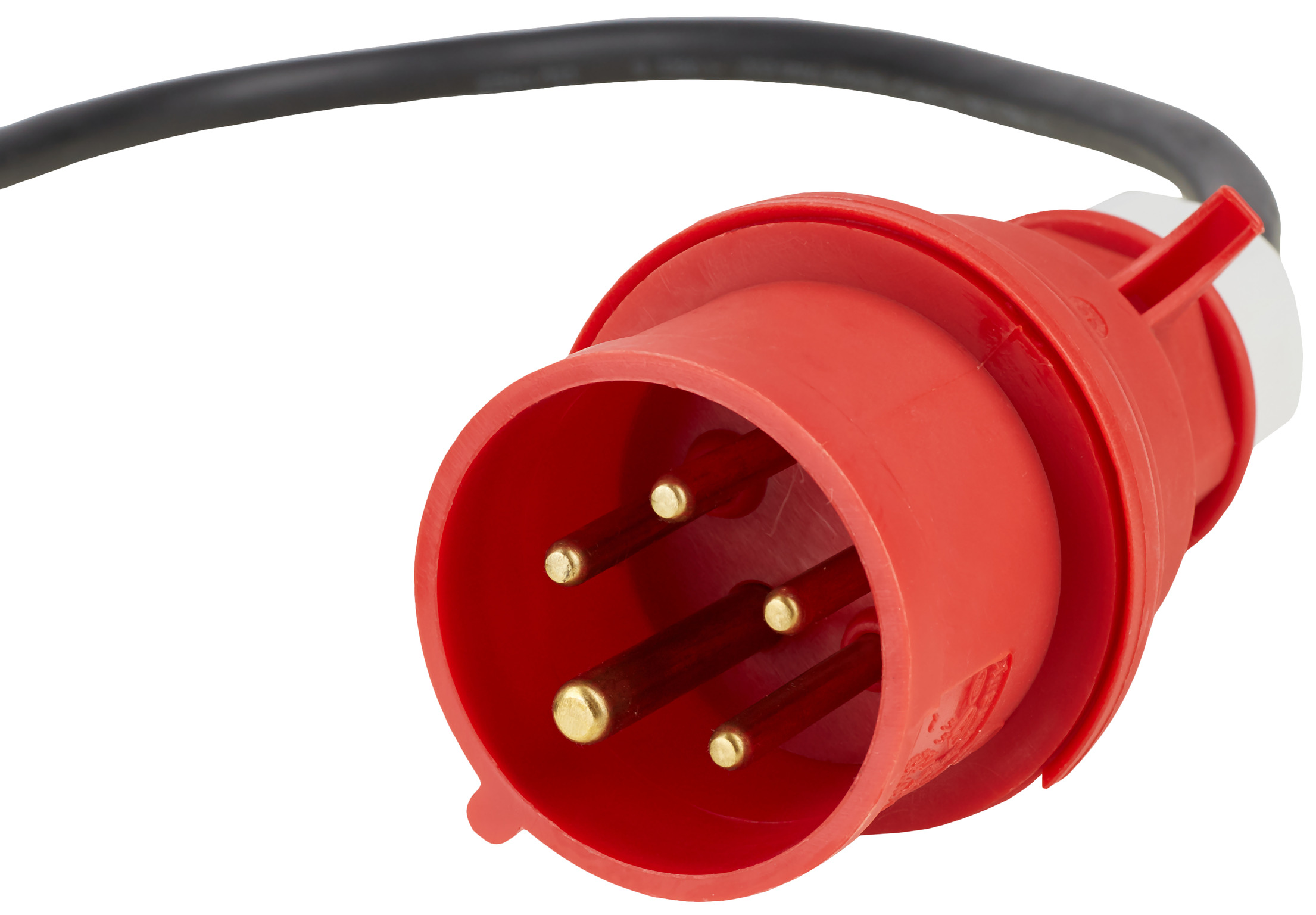

- Cable designation: H07RN-F 5G1,5
- Cable length: 1 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Residual current circuit breaker (RCCB): Without
- Number of earthed socket outlets: 3
Leveransens omfattning
Leveransens omfattning

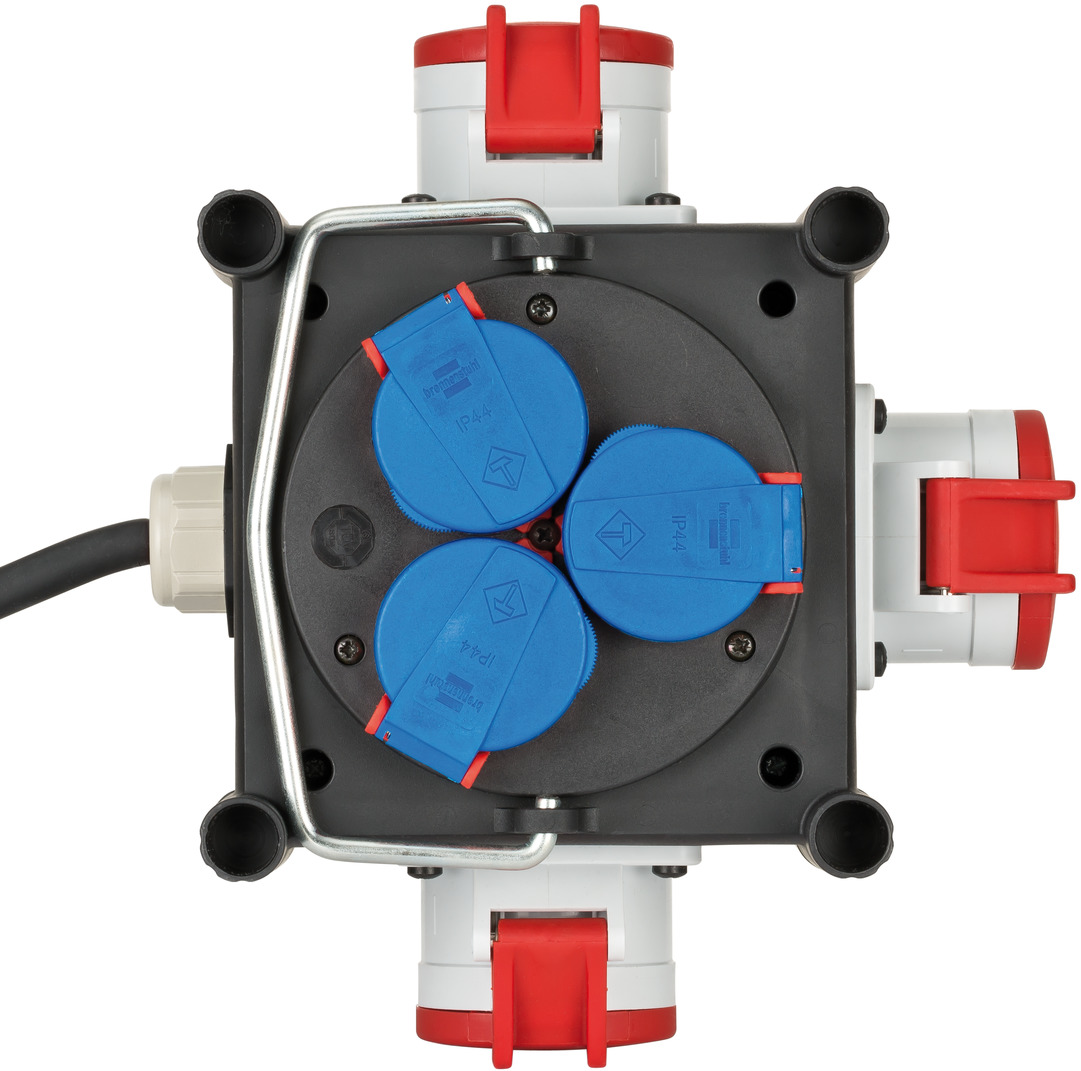

Compact power distributor BSV 3 LS E/16 2 IP44
Nedladdningar
Nedladdningar
All products are subject to technical changes
