Protective adapter cable / extension cable for outdoors with RCD (outdoor extension cable for use on construction sites and permanent outdoor use, IP44, 2m cable)
Beskrivning

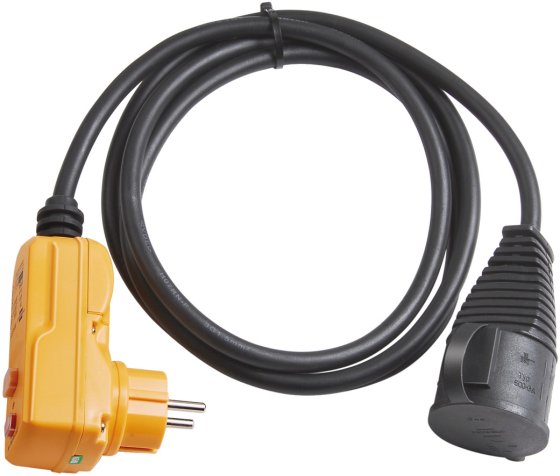

The protective adapter cable consists of a 2m long cable with an RCD plug and a protective contact coupling. Thanks to its very robust design, the extension cable is ideally suited for use on construction sites and permanent outdoor use. The RCD plug has a function check indicator and also impresses with the following features:
- With IP 44 RCD plug and splash-proof coupling
- For maximum safety when using electrical appliances
- Tripping time: <30 ms
- Tripping current: 30 mA
- Operating temperature: -25 °C to 40 °C
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Tekniska data
- Cable designation: H07RN-F 3G1,5
- Cable length: 2 m
- Height: 7,40 cm
- Length: 24 cm
- Weight: 0,63 kg
- Width: 20 cm
- Cable quality: Rubber-Neoprene
- With residual current circuit breaker (RCCB): Yes
- Nominal input voltage: 250 V
- Connection: Earthed coupling
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
Leveransens omfattning
Protective-Adapter-Cable FI IP44
