brennenstuhl®estilo Duplex Desktop Power Strip with switch and surge protection (extension lead with stainless steel surface, 2x slot for Keystone modules, 9x protective contact sockets, 2m cable)

Article number 1153580110

EAN 4007123682157

Table power strip in innovative, two-part design with illuminated, two-pole safety switch and practical clamping function for optimum power supply in the home office or at the workplace

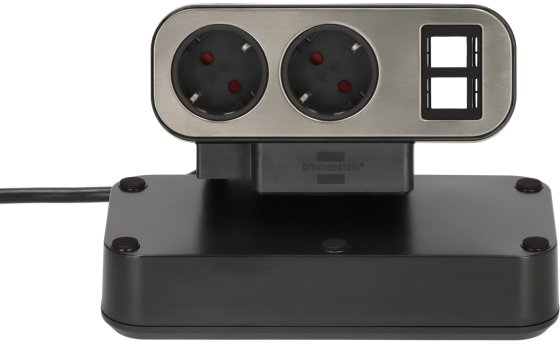

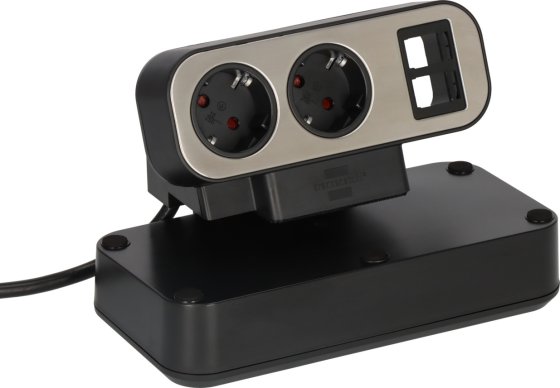

The desktop unit has 2 socket slots as well as 2 slots for Keystone modules - with the matching Keystone module you can integrate the port you need into the socket strip without tools - maximum connection flexibility
A further 7 socket slots are located under the table for optimum power supply to your appliances - Socket outlets with earthing contact and increased protection against accidental contact in 45° arrangement, also suitable for angled plugs

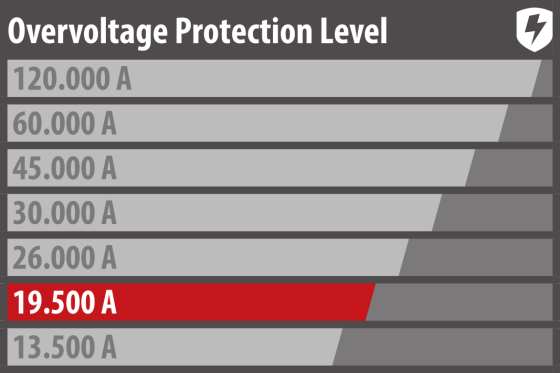

Extension lead with surge protection - protects valuable devices from surges with a max. leakage current of up to 19,500A - includes function control light as well as additional acoustic warning signal in case of failed surge protection
The power socket with 2m cable H05VV-F 3G1.5 is suitable for table thicknesses of 16-45mm and can be fixed by tightening the screws - anti-slip pads ensure an ideal hold on the table

Article number 1153580110

EAN 4007123682157

Description

The two-part brennenstuhl®estilo Power Strip with two-pole switch and high-quality stainless steel surface brings order to your home. It has surge protection, which protects your devices from disturbances in the power grid, such as surges, indirect lightning strikes or line noise, with a maximum sum of leakage currents of up to 19,500A. The function control light as well as the acoustic warning signal in case of a failing surge protection offer additional protection. The table power socket strip can be adapted to table thicknesses of 16-45mm and anti-slip pads provide an ideal grip. The extension lead offers 2 socket nests above the table as well as 2 slots for Keystone modules. With the matching Keystone module, you can integrate the connection you need into the socket strip without tools, offering a high degree of connection flexibility. A further 7 socket slots are available on the underside to keep the workstation neat and tidy. It also convinces with the following features:

Cable length 2m
Cable designation: H05VV-F 3G1.5
Shapely, innovative, two-part design
Sockets with increased contact protection
Socket outlets with earthing contact in 45° arrangement, also suitable for angled plugs

Keystone modules

Keystone is a modular connection system with largely standardised plug connections. They are characterised by their high flexibility, versatility and ease of installation. Various connection types, such as HDMI, RJ45 and USB, can be integrated into the power strip without tools and used in parallel. Therefore, the Keystone modules allow the power strip to be customised to meet specific requirements and to connect different electronic devices.

Technical data

Cable designation: H05VV-F 3G1,5
Cable length: 2 m
Height: 14,80 cm
Length: 13 cm
Weight: 1,01 kg
Width: 24 cm
Colour: silver, black
Usage: Household
Type of fastening: Fastening with screw
With surge protection: Yes
Max. electr. load capacity: 3680 W
Protection: Not applicable
With residual current circuit breaker (RCCB): No
Nominal input voltage: 230 V
Type of plug: Angle plug
Number of socket outlets total: 9
Socket outlet arrangement: 45°
Degree of protection (IP): IP20
Suitable for outdoor area: No
Cable quality: PVC, PVC
Suitable for 19 inch rack mounting: No
Suitable for built-in mounting: No
With hand/ foot switch: No
With wireless control: No
With interference suppressor filter: No
Main Follow function: No
Surge current: 19500 A

Scope of supply

brennenstuhl®estilo Duplex Desktop Power Strip with surge protection

Downloads

Instruction Manual (5.58 MB)

All products are subject to technical changes
