CEE extension cable 5m (Camping extension lead H07RN-F 3G2.5 in orange with CEE plug and socket with sealing cap, for permanent outdoor use, Made in Germany)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Extension Cables
- Product image
- Additional product image
- Additional product image
- The right connection cable

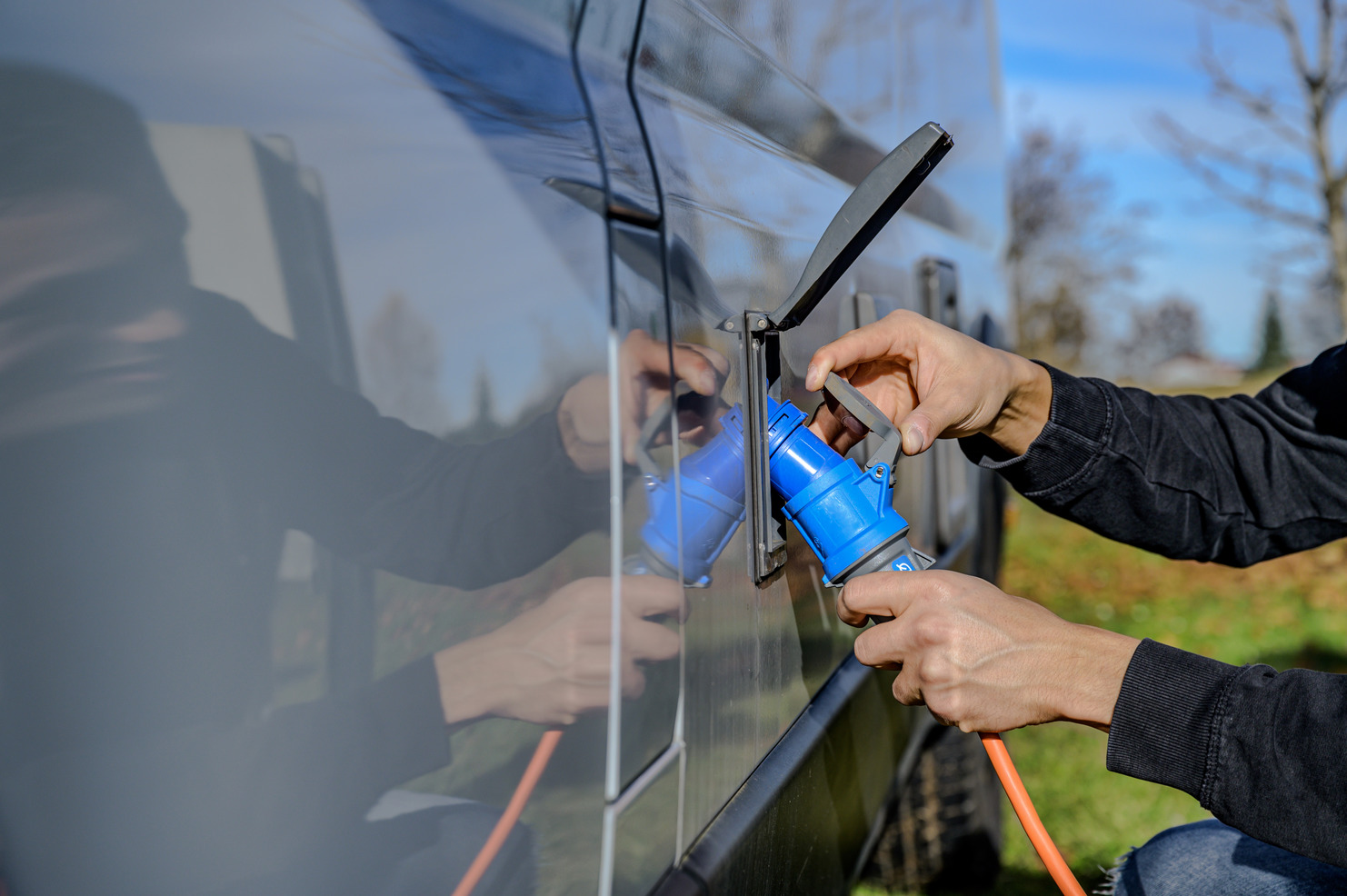

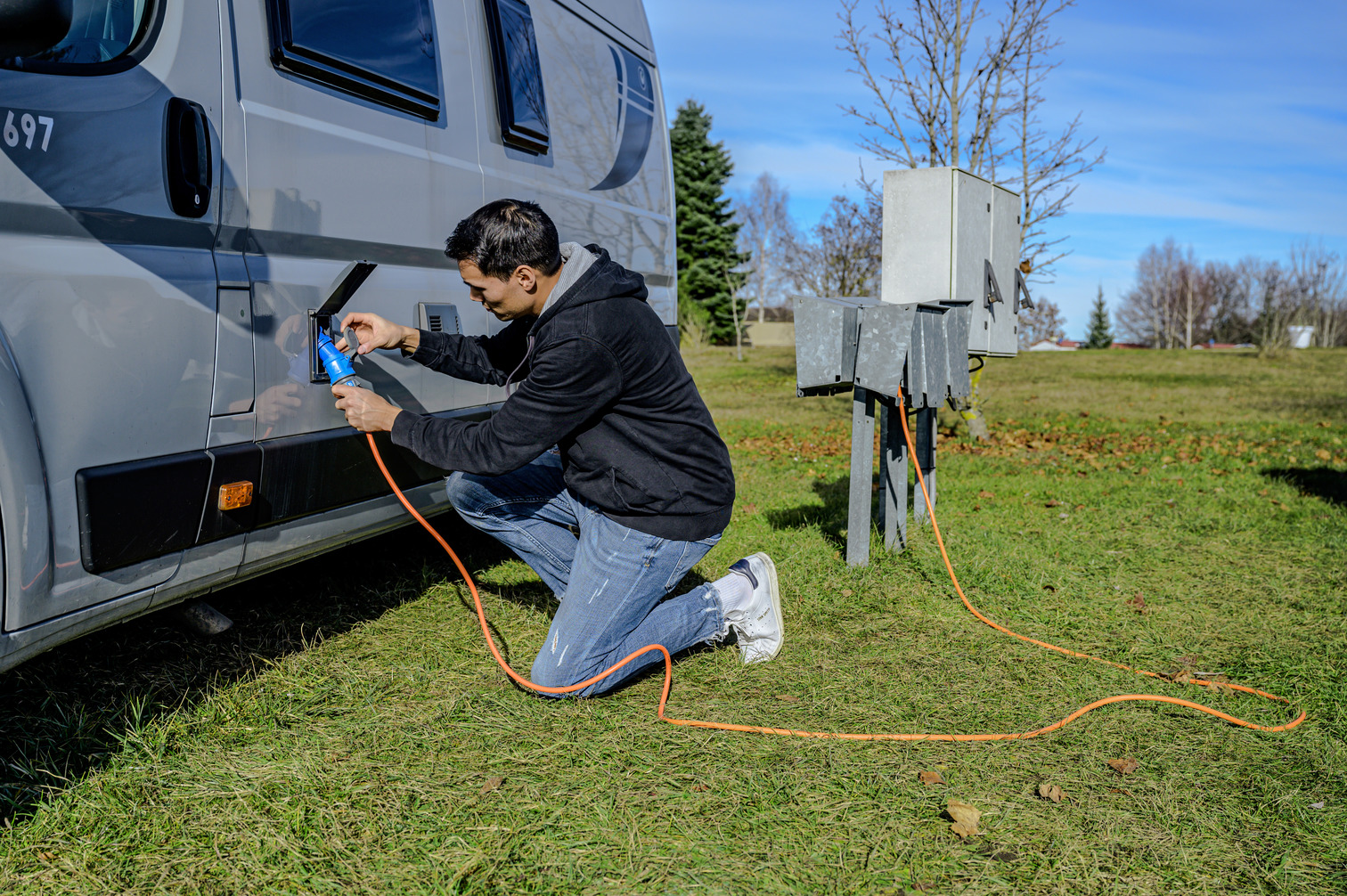

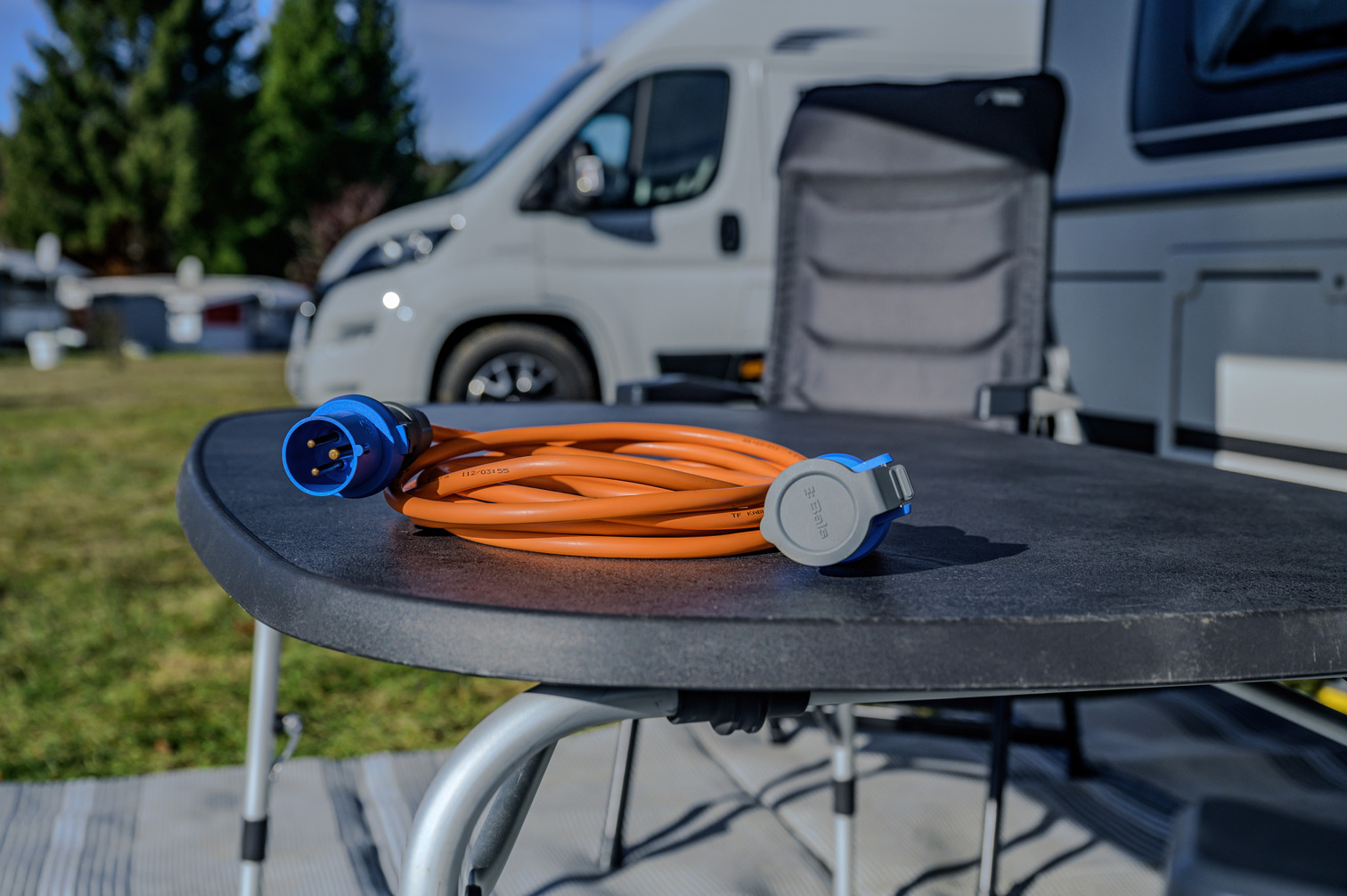

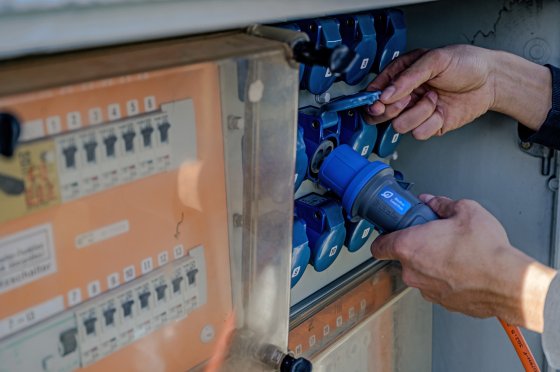

- Application image
- Signal colours on the campsite
- The right cable length on the campsite
- Product image
- Additional product image
- Additional product image
- The right connection cable
- Application image
- Signal colours on the campsite
- The right cable length on the campsite
Article number 1167650605
EAN 4007123673926
  • Extremely robust and high-quality CEE extension cable with 5m cable (H07RN-F 3G2.5) is ideally suited as a camping cable, providing a reliable power supply on the campsite
  • CEE extension lead with a rubber-neoprene cable quality with CEE plug and socket with sealing flap
  • The camping cable is ideal for permanent outdoor use thanks to the IP44 protection class and the RN cable - ideal to use the CEE cable as caravan extension or camping cable
  • The durable camping extension lead is made of an extremely robust material and is perfect for all types of caravans and motorhomes
  • CEE 230V extension lead with 5m cable in the signal colour orange - helpful to prevent potential tripping hazards
Article number 1167650605
EAN 4007123673926

Description

Description

The caravan extension lead IP44 in the colour orange and 5m cable impresses with its quality and safety in all areas. Thanks to the special rubber cable this is ideal for camping and permanent outdoor use. In addition, the socket is equipped with a closing flap and is therefore protected from dirt and splash water. Furthermore, the CEE extension lead convinces with the following features:

  • Cable quality rubber-neoprene

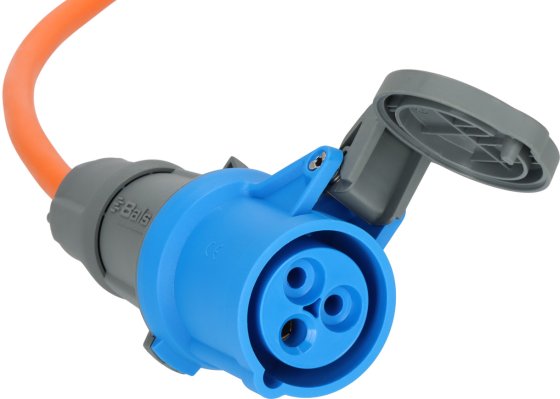

  • Socket: CEE 230V/16A

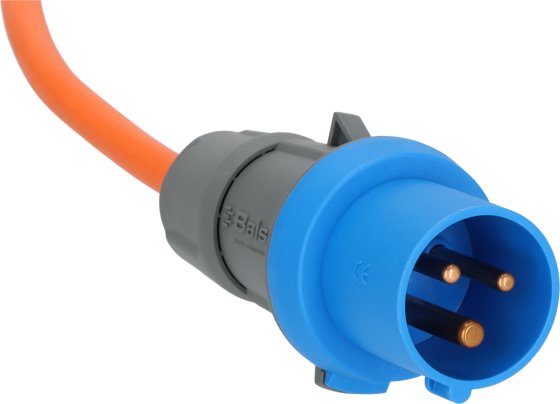

  • Plug: CEE 230V/16A
The right wire diameter
The right wire diameter
  • A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
  • A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.
The right connection cable
The right connection cable
  • The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
  • Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.
Signal colours on the campsite
Signal colours on the campsite
  • The orange signal colour makes you and people in the vicinity aware of cables lying around and potential tripping hazards.
The right cable length on the campsite
The right cable length on the campsite
  • The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.
  • With cable drums, the cable must always be completely unrolled when in use!
Technical data

Technical data

  • Cable designation: H07RN-F 3G2,5
  • Cable length: 5 m
  • Cable quality: Rubber-Neoprene, Rubber-Neoprene
  • With residual current circuit breaker (RCCB): No
  • Oil-resistant: Yes
  • Degree of protection (IP): IP44
  • Suitable for outdoor area: Yes
  • Height: 9,50 cm
  • Length: 19,50 cm
  • Weight: 1,28 kg
  • Width: 19,50 cm
Scope of supply

Scope of supply

CEE Extension Cable

Downloads

Downloads

Accessories

Accessories

1510020
Transport and storage bag for extension cable
1160670
Fastening and fixing strap

All products are subject to technical changes
