CEE extension cable 5m (Camping extension lead H07RN-F 3G2.5 in orange with CEE plug and socket with sealing cap, for permanent outdoor use, Made in Germany)

- The right cable length on the campsite

Article number 1167650605

EAN 4007123673926

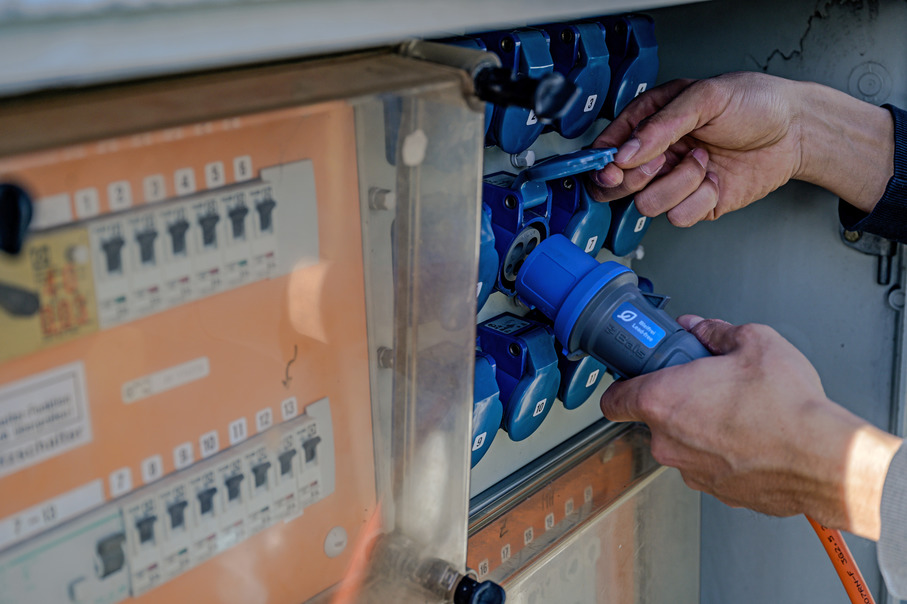

Extremely robust and high-quality CEE extension cable with 5m cable (H07RN-F 3G2.5) is ideally suited as a camping cable, providing a reliable power supply on the campsite

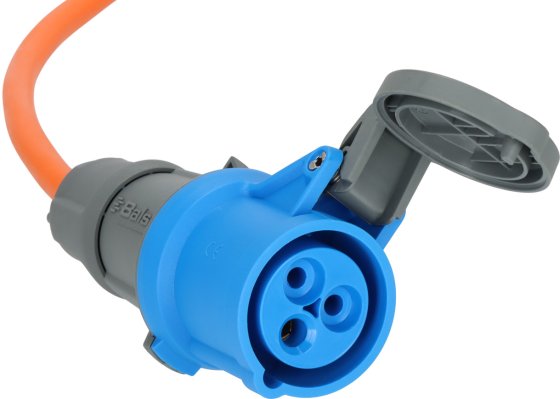

CEE extension lead with a rubber-neoprene cable quality with CEE plug and socket with sealing flap

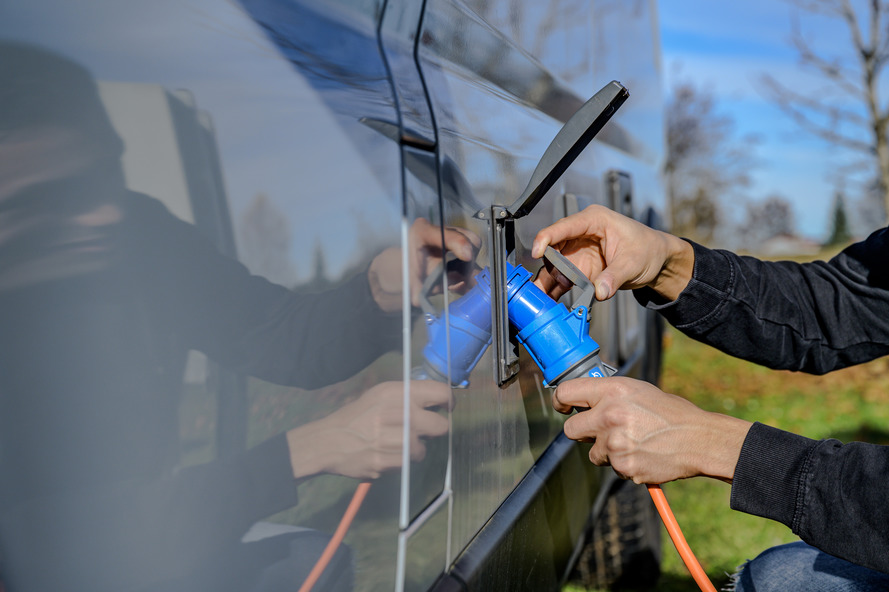

The camping cable is ideal for permanent outdoor use thanks to the IP44 protection class and the RN cable - ideal to use the CEE cable as caravan extension or camping cable
The durable camping extension lead is made of an extremely robust material and is perfect for all types of caravans and motorhomes
CEE 230V extension lead with 5m cable in the signal colour orange - helpful to prevent potential tripping hazards

Article number 1167650605

EAN 4007123673926

Description

The caravan extension lead IP44 in the colour orange and 5m cable impresses with its quality and safety in all areas. Thanks to the special rubber cable this is ideal for camping and permanent outdoor use. In addition, the socket is equipped with a closing flap and is therefore protected from dirt and splash water. Furthermore, the CEE extension lead convinces with the following features:

Cable quality rubber-neoprene
Socket: CEE 230V/16A
Plug: CEE 230V/16A

The right wire diameter

A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.

The right connection cable

The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.

Signal colours on the campsite

The orange signal colour makes you and people in the vicinity aware of cables lying around and potential tripping hazards.

The right cable length on the campsite

The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.
With cable drums, the cable must always be completely unrolled when in use!

Technical data

Cable designation: H07RN-F 3G2,5
Cable length: 5 m
Cable quality: Rubber-Neoprene, Rubber-Neoprene
With residual current circuit breaker (RCCB): No
Nominal input voltage: 230 V
Oil-resistant: Yes
Connection: CEE plug, CEE coupling
Degree of protection (IP): IP44
Suitable for outdoor area: Yes
Height: 9,50 cm
Length: 19,50 cm
Weight: 1,28 kg
Width: 19,50 cm

Scope of supply

CEE Extension Cable
