Garant S IP44 cable reel 25m (made of sheet steel, permanent outdoor use, Made in Germany)
Description
Description
- Reel body made from rust-resistant and galvanised sheet steel fitted to a particularly sturdy galvanised steel tube frame.
- Innovative and ergonomic cable guide handle "cable pilot" for perfect cable-management during winding. Handle commutes on both sides and allows easy carrying and cable storage. For right and left handed easy to rewind.
- Rotary handle for comfortable rolling up.
- RN cable is very robust, oil resistant and especially suited for professional use and on site.
- 3 water-jet protected earthed socket outlets with self-closing protective caps.
- Thermal cut-out protection, indicator shows overheating or overloading.

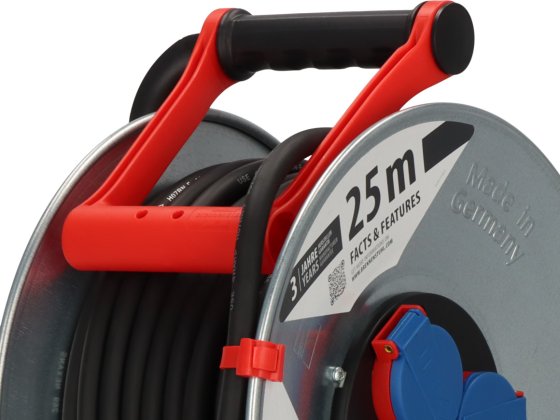

Cablepilot
The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Technical data
Technical data
- Cable designation: H07RN-F 3G2,5
- Cable length: 25 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1300 W
- Capacity in uncoiled state 230V: 3300 W
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 230 V
- With Bretec: No
- Reel diameter: 290 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Outdoor
- Housing material: Sheet steel
- With plug storage: Yes
- Number of CEE socket outlets:
- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 19 cm
- Weight: 7 kg
- Width: 29 cm
Downloads
Downloads
Accessories
Accessories
All products are subject to technical changes
