Professional Multi Battery LED Battery Portable Work Light HL 3000 (20W, 1140 + 2160lm, IP54, compatible with 18V batteries from 11 different manufacturers, without battery, Engineered in Germany)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft LED Construction & Work Lights
Article number 1173730000
EAN 4007123681396
Article number 1173730000
EAN 4007123681396
Description

Description

Thanks to the brennenstuhl® Multi Battery 18V System, the extremely robust and bright Professional Multi Battery portable work light HL 3000 is compatible with different 18V batteries (different Ah classes) from the 11 power tool manufacturers Bosch Professional, Dewalt, Einhell, Fein, Festool, Flex, Hikoki, Makita, Metabo CAS, Milwaukee and Würth. So no matter which battery system is already in use, the interface technology enables maximum flexibility and it is possible to fall back on the battery system of one's choice. With just a flick of the wrist, the matching adapter can be inserted at the interface. Brennenstuhl is part of AMPShare - Powered by Bosch Professional. The AMPShare battery alliance enables the use of brennenstuhl® work lights with the 18V batteries from Bosch Professional. The extremely robust yet lightweight work light is a true multi-talent thanks to two light sources. The SMD LED is perfectly suited as a concentrated spotlight, while the COB LED light ring provides ideal working light with various light levels. The portable searchlight also has a battery status indicator that shows the remaining energy of the batteries used (the batteries must be charged externally) and a protection system for Powertool batteries. This protects the batteries from deep discharge and overheating (caused by high load currents). In addition, the Multi Battery outdoor emergency light has the following convincing features:

  • With on/off switch

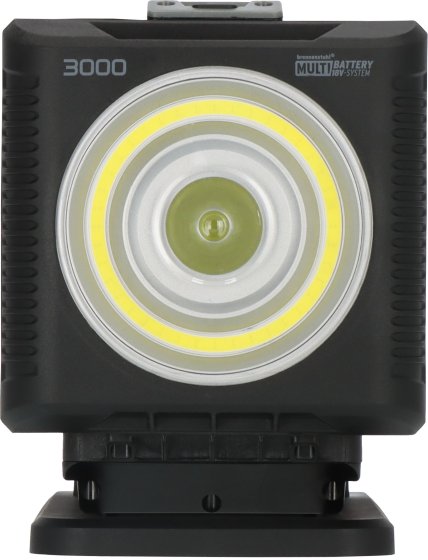

  • 2 in 1: Portable searchlight and worklight in one

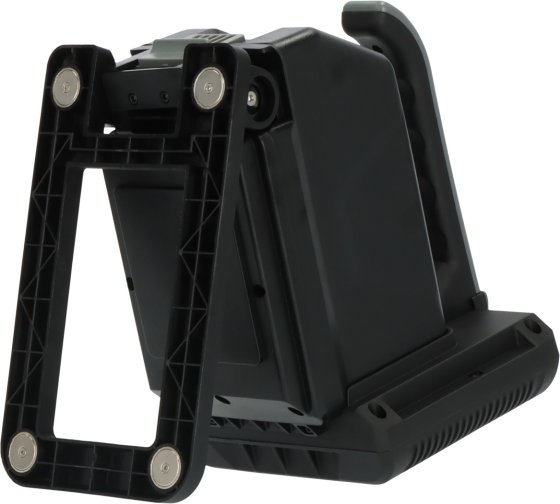

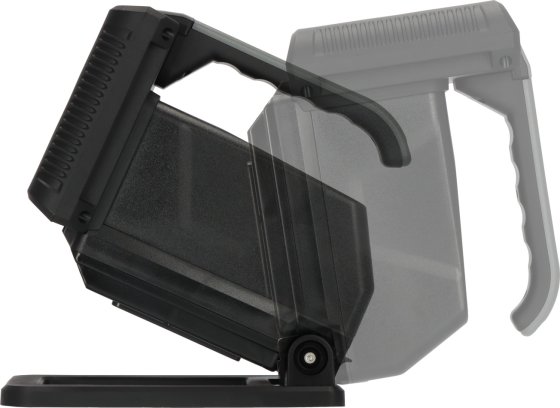

  • With ergonomic handle and adjustable magnetic base
  • With battery and switch level display
  • Light duration depending on the battery used:
at 100% light output: approx. 50min/1Ah for the COB LEDs, approx. 100min/1Ah for the SMD LED
at 75% light output: approx. 67min/1Ah for the COB LEDs
at 50% light output: approx. 100min/1Ah for the COB LEDs
at 25% light output: approx. 200min/1Ah for the COB LEDs
  • Switch with function: 100% spot - 100% area light - 75% - 50% - 25% light
  • Luminous flux COB LEDs: 2160lm
  • Luminous flux SMD LED: 1140lm
  • With a luminous range of the SMD LEDs of up to 200m
  • Protection class: IP54
  • When using 18V batteries of higher Ah classes without battery protection cover IP20
  • Colour temperature: 6500K
  • Protection class: III
  • IK08
  • BGI608 K2: Use for rough operation with high mechanical, physical and chemical effects
Interface technology
Interface technology

The brennenstuhl® Multi Battery 18V System makes it possible to use a work light with the already preferred battery system. The LED battery hand light HL 3000 is suitable for use with 11 outstanding Powertool 18V battery systems with just one handle. The interface between the work light and the battery are 10 adapters.

Lighting duration depending on the battery used
Lighting duration depending on the battery used
  • at 100% light intensity: approx. 3.3h/4Ah for the COB LEDs, approx. 6.7/4Ah for the SMD LED
  • at 75% light intensity: approx. 4.5h/4Ah for the COB LEDs, approx. 8.9h/4Ah for the SMD LED
  • at 50% light intensity: approx. 6.7h/4Ah for the COB LEDs, approx. 13.3h/4Ah for the SMD LED
  • at 25% light intensity: approx. 13.3h/4Ah for the COB LEDs, approx. 26.6h/4Ah for the SMD LED
Protection class
Protection class

The Multi Battery LED work lights are compatible with various 18V batteries (different Ah classes) from the Powertool manufacturers. To use some batteries of higher Ah classes, the battery protection cover of the work light must be removed. Without the protective cover, the work light complies with protection class IP20 (protected against contact and foreign bodies). With a protective cover, the LED battery-powered hand floodlight HL 3000 can be used outdoors without any problems thanks to the IP54 protection class.
