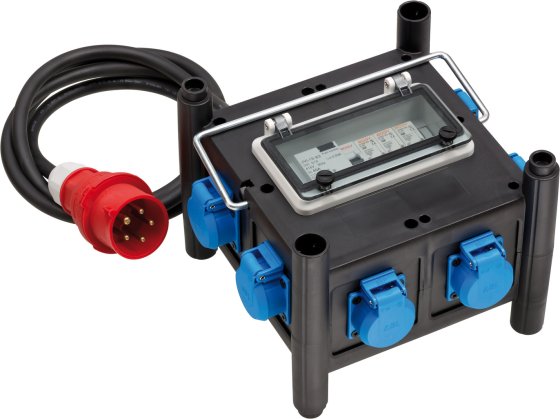

Compact power distributor BSV 3-FI / TPE 2m H07RN-F5G2.5 - 7x230V
Description
Description
- Stackable, splash-proof housing made from a special rubber compound for continuous load.
- Unbreakable, impact resistant, ageing and weather resistant.
- Resistant to a variety of oils, greases, gasoline and acids, UV and ozone radiation.
- Housing resistant to temperatures from -30 °C to +80 °C.
- Quality sockets in accordance with VDE 0620-1.
- Certified circuit breakers for your safety.
- With RCD circuit breaker 30 mA for extra safety.
- Sturdy metal carrying handle.
- Oil resistant rubber cable for permanent outside use.
- Earthed sockets 230 V with 3 different phases.
RCD personal protection switch
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Technical data
Technical data
- Height: 23 cm
- Length: 26,50 cm
- Weight: 3,48 kg
- Width: 30,50 cm
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total:
- Number of socket outlets total: 7
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 5G2,5
- Cable length: 2 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Number of earthed socket outlets: 7
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
Downloads
Downloads
All products are subject to technical changes
