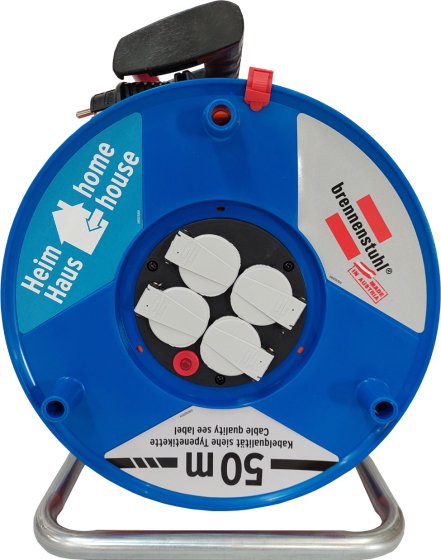

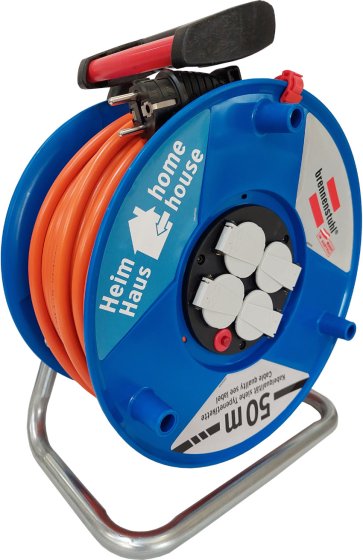

Garant ST cable drum 290, 4x protective contact sockets 230V/16A, 50m AT-N07V3V3-F 3G1.5 orange, IP44

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels
- Product image
- Additional product image
- Product image
- Additional product image
Article number 1208468
EAN 4007123014477
Article number 1208468
EAN 4007123014477

Description

Description

  • Reel body made of special plastic on galvanised carrying frame.
  • Ergonomic handle with axle for perfect cable guidance during winding and unwinding.
  • Overheating protection, indicator light for overheating and overload.
  • Earthing contact plug 230V/16A.
  • 4 protective contact sockets 230V/16A with hinged covers.
Technical data

Technical data

  • Cable designation: AT-N07V3V3-F 3G1,5
  • Cable length: 50 m
  • Cable quality: BREMAXX, BREMAXX
  • With residual current circuit breaker (RCCB): No
  • With Bretec: No
  • With CABLEPILOT: No
  • With carrying handle: Yes
  • Usage: Trade/ construction sites
  • Housing material: Plastic
  • With plug storage: No
  • Number of earthed socket outlets: 4
  • Degree of protection (IP): IP20
  • Area of use: Indoor
  • Height: 37 cm
  • Length: 19 cm
  • Weight: 8 kg
  • Width: 29 cm
  • Reel diameter: 290 mm
Downloads

Downloads

All products are subject to technical changes
