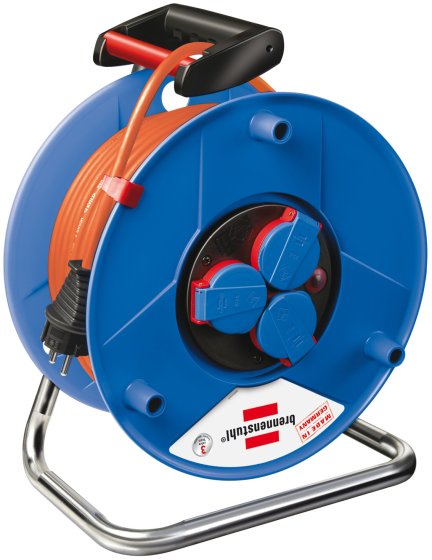

Garant ST cable drum 290, 3x protective contact sockets 230V/16A, 20m AT-N07V3V3-F 3G2.5 orange, IP44

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels
- Product image
Article number 1208358
EAN 4007123302758
Article number 1208358
EAN 4007123302758
Description

Description

  • Reel body made of special plastic on galvanised carrying frame.
  • Ergonomic handle with axle for perfect cable guidance during winding and unwinding.
  • Overheating protection, indicator light for overheating and overload.
  • Protective contact rubber plug 230V/16A.
  • 3 protective contact sockets 230V/16A with hinged covers.
Technical data

Technical data

  • Cable designation: AT-N07V3V3-F 3G2,5
  • Degree of protection (IP): IP44
  • Area of use: Outdoor
  • Height: 37 cm
  • Length: 29 cm
  • Weight: 5,10 kg
  • Width: 20 cm
  • Cable length: 20 m
  • Capacity in coiled state 230V: 1005 W
  • Capacity in uncoiled state 230V: 3500 W
  • With residual current circuit breaker (RCCB): No
  • With Bretec: No
  • Reel diameter: 290 mm
  • With CABLEPILOT: No
  • With carrying handle: Yes
  • Usage: Outdoor
  • Housing material: Plastic
  • With plug storage: No
  • Number of earthed socket outlets: 3
Downloads

Downloads

All products are subject to technical changes
