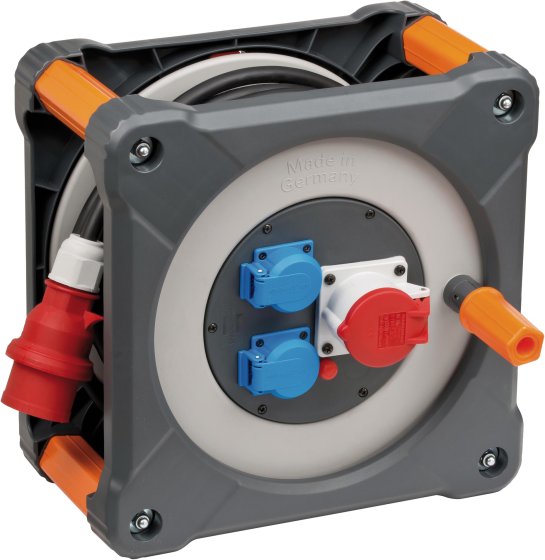

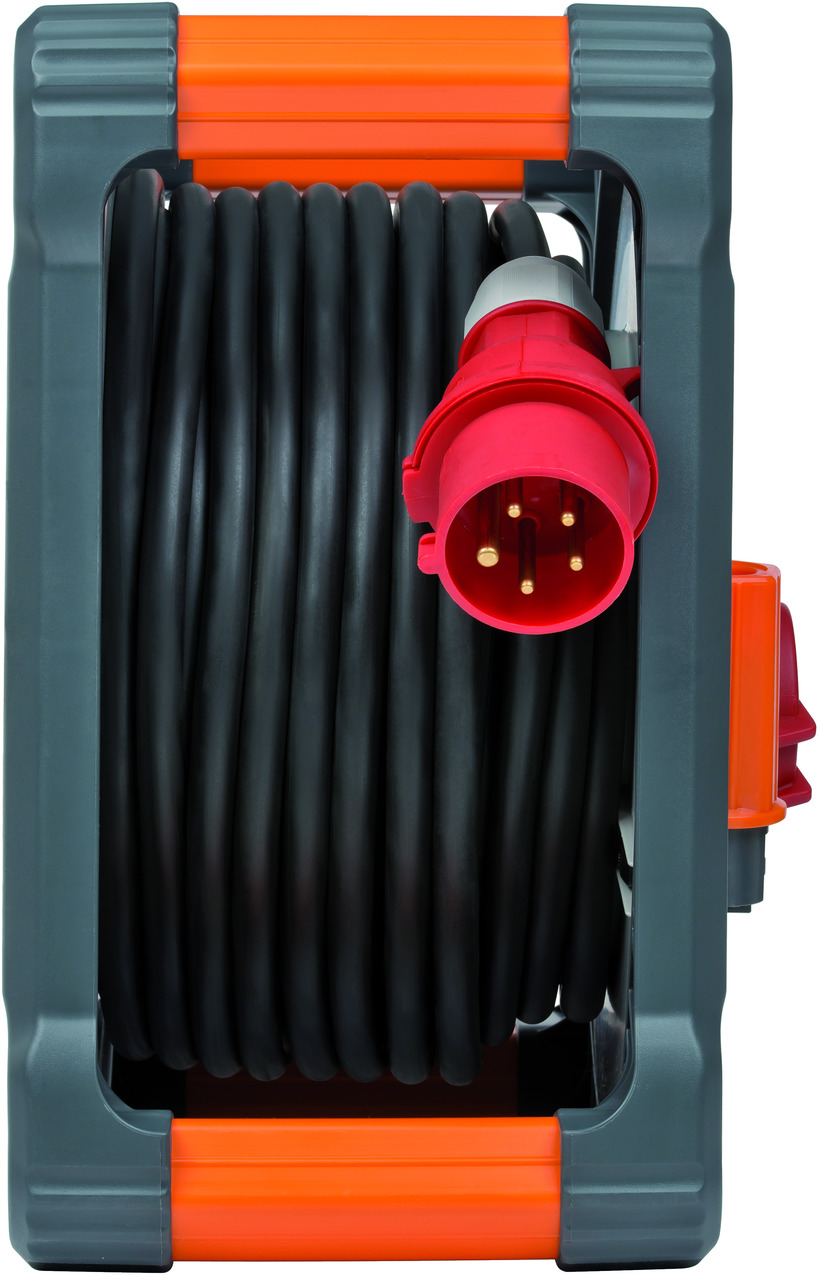

professionalLINE Cable Reel CEE 1 KD 3200 IP44 30m H07RN-F 5G2,5
Description
Description
- Pro-reel with rollover protection on all sides.
- Stable on all four sides, perfect cable management from all four sides.
- Large, sturdy fold-down turning handle rolls cables in and out effortlessly.
- Sturdy carrying handles and plug storage compartments on all four sides.
- Category 2 (K2) equipment: Use for rough operation with high mechanical, physical and chemical effects.
- The body and reel are made of Rubbabren, an extremely shock- and impact-resistant plastic and rubber mix. For permanent use in toughest conditions.
- Cold-resistant to -25 °C.
- RN cable is very robust, oil resistant and especially suited for professional use and on site.

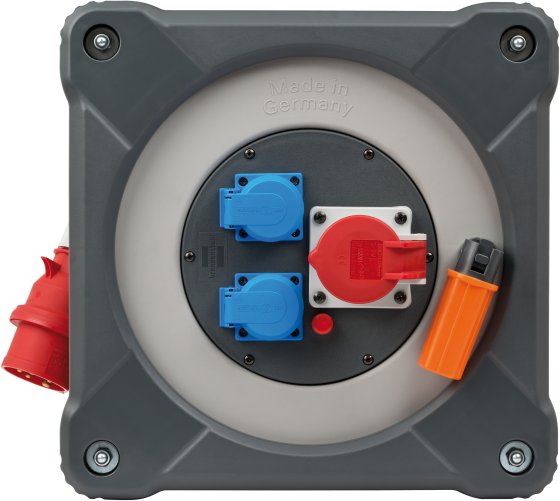

- CEE-plug 400 V/16 A, 1 CEE-socket 400 V/16 A, 2 water-jet protected sockets 230 V.
- Earthed sockets connected to separate phases.
- With 3-pin safety cut-out and thermal overload protection.
Technical data
Technical data
- Cable designation: H07RN-F 5G2,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3400 W
- Nominal input voltage: 230 V, 400 V
- Reel diameter: 320 mm
- With carrying handle:

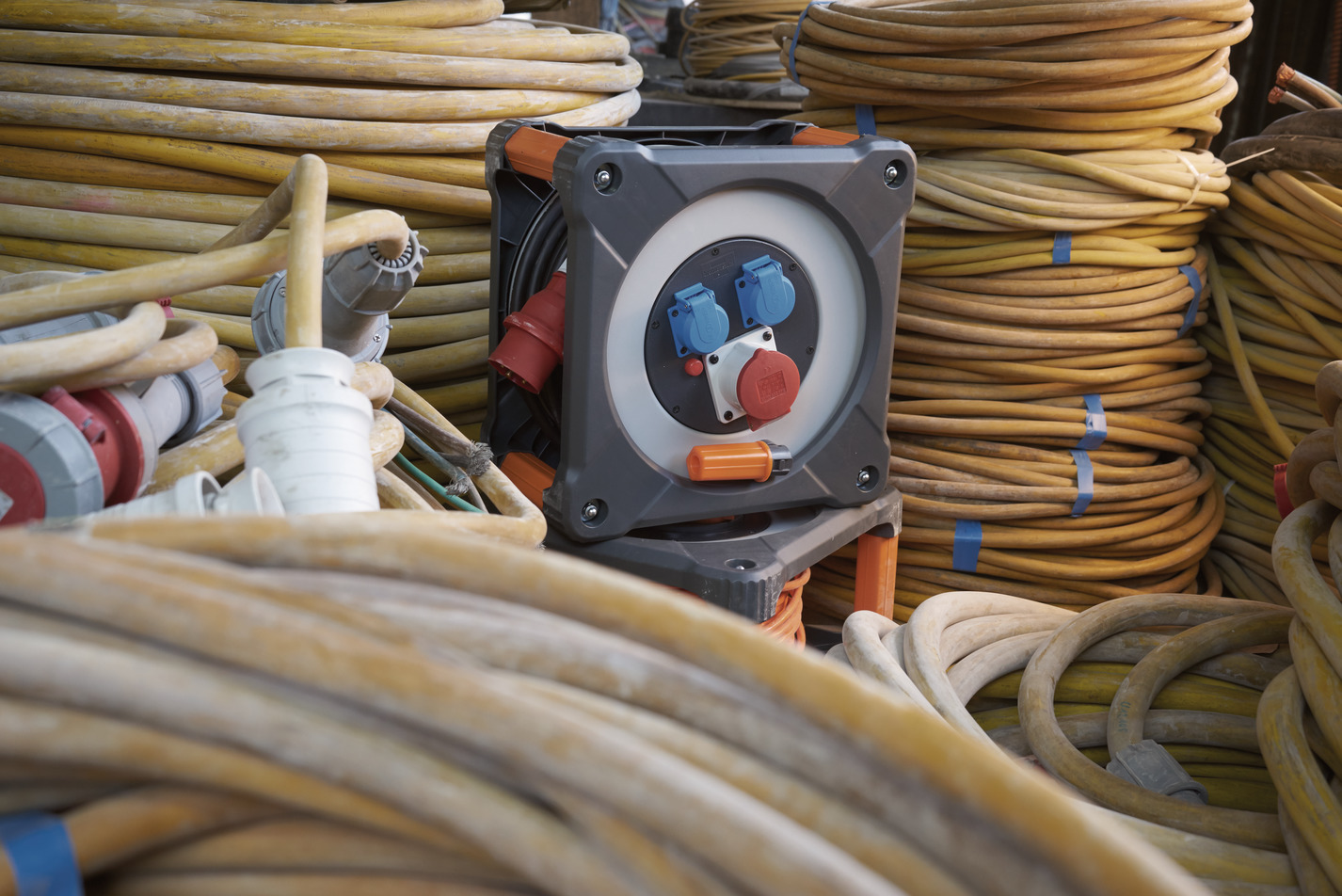

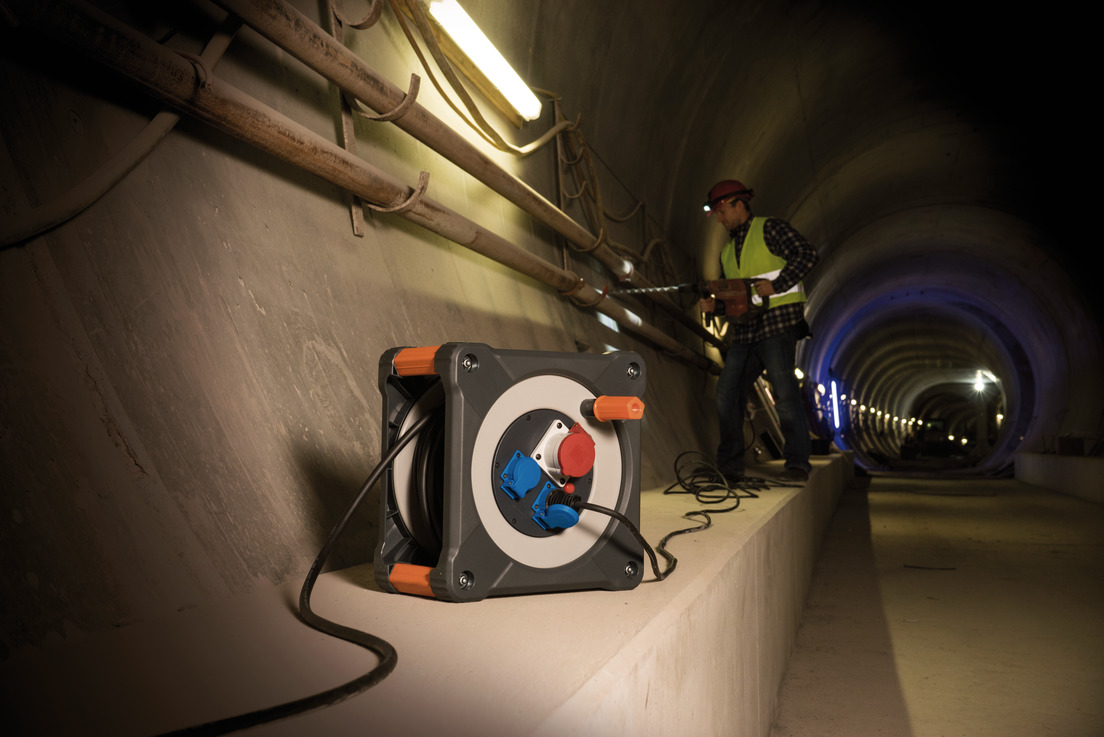

- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage:
- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 2
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 24 cm
- Weight: 11,84 kg
- Width: 37 cm
- Additional cable length: 0 m
- Capacity in coiled state 400V 16A: 2400 W
- Capacity in uncoiled state 400V 16A: 11000 W
Downloads
Downloads
All products are subject to technical changes
