Camping Power Station with earthed socket / Power Distributor 16A for permanent outdoor use IP44 (Caravan Power Distributor with 1,5m cable in orange, with, Made in Germany)
Description
Description

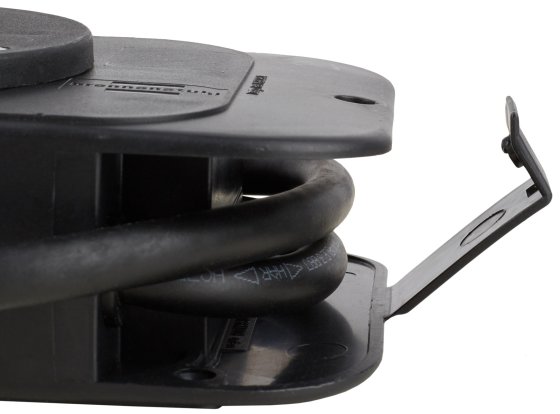

The robust power station with 2m rubber-neoprene cable is ideal for camping. Due to its IP44 protection class and cable quality, the caravan extension lead can be permanently used outdoors (protected against foreign bodies and splash water) and can also be easily hung on a wall if required. The power distributor, with its housing made of highly break-proof plastic, also has a practical roll-up device for storing the cable. Furthermore, the power station 16A convinces with the following features:
- Plug: Earthed 230V/16A (L/N polarity not defined)
- Sockets: 2x CEE 230V/16A, 3x 230V earthed contact sockets
- Cable length: 1,5m
- Cable colour: orange
- Cable quality: rubber-neoprene
- Cable designation: H07RN-F 3G2.5
- Maximum current carrying capacity: 16A
- With 1-pole safety cut-out and overheating protection
The right wire diameter
- A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
- A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.
The right connection cable
- The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
- Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.
Technical data
Technical data
- Height: 12 cm
- Length: 35 cm
- Weight: 1,24 kg
- Width: 13,50 cm
- Max. electr. load capacity: 3500 W
- Nominal input voltage: 230 V
- With carrying handle: No
- Housing material: Plastic
- Number of CEE socket outlets total: 2
- Number of socket outlets total: 5
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 3G2,5
- Cable length: 1,50 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Residual current circuit breaker (RCCB): Without
- Number of earthed socket outlets: 3
Scope of supply
Scope of supply
Camping power station
