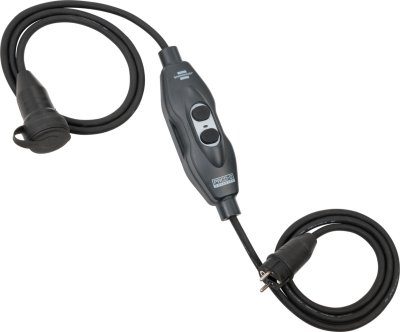

Personal Protection Plug with residual current circuit breaker and 2-pole disconnection (suitable for outdoor use, IP55)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Plugs & sockets
Article number 1290670
EAN 4007123641147
  • Personal protection plug as effective protection against electrical accidents - disconnects the active conductors from the mains at lightning speed as soon as residual currents occur
  • Residual current circuit breaker with two-pole disconnection
  • Reliable personal protection with rated residual current of 30mA
  • Personal protection plug suitable for outdoor use thanks to protection class IP55 (dust and jet water protected)
  • Personal protection plug BDI-S 2 30 in the color yellow
Article number 1290670
EAN 4007123641147
Description

Description

The personal protection plug is dustproof and jet-proof thanks to its IP55 protection rating, making it perfect for outdoor use. It serves to protect against dangerous electric shocks. Thanks to the personal protection plug, residual currents are immediately detected and disconnected from the mains in a flash. The residual current circuit breaker with two-pole disconnection also convinces with the following features:

  • Suitable for 3G0.75², up to 3G2.5², cable.
  • Voltage: 250 V
  • Max. Current carrying capacity: 16 A
  • Protective contact plug (type E and F)
Technical data

Technical data

  • Height: 13,30 cm
  • Length: 8,80 cm
  • Weight: 0,17 kg
  • Width: 5 cm
  • Max. current carrying capacity: 16 A
  • Nominal input voltage: 230 V
  • Housing material: Plastic
  • Degree of protection (IP): IP55
  • Area of use: Outdoor
Downloads

Downloads

All products are subject to technical changes
