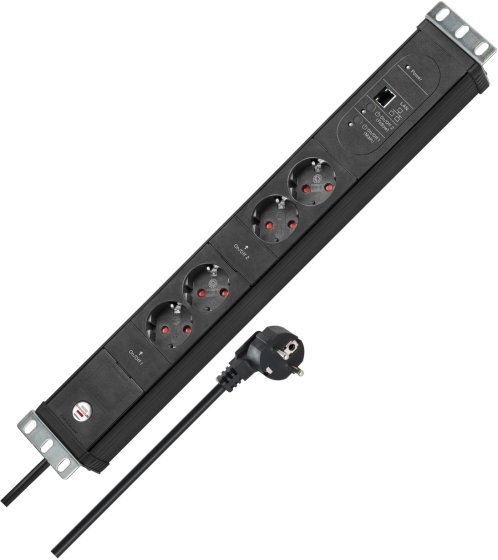

Premium Web-Line V3 Internet extension lead (4-way Extension Lead in 19" with main-follow function, LAN connection, 3m cable, Made in Germany)

Article number 1156057984

EAN 4007123657827

The Master-Slave or Main-Follow technology is the automatic switching system for power strips (2 Main + 2 Follow)
Sockets for installation in 19" network or server cabinets 1.5 U high
Multiple plug with two independently switchable circuits with 16A load capacity
Professional Internet socket strip for worldwide control, measurement and monitoring of electrical devices via Ethernet
If the device connected to the main socket is switched on, the follow sockets are also switched on - If no current flows through the main socket, the follow sockets are switched off

Article number 1156057984

EAN 4007123657827

Description

The Premium-Web-Line V3 4er multiple power strip with 3m cable serves as a professional Internet power strip for worldwide control, measurement and monitoring of electrical devices via Ethernet (LAN). The 19" multiple power strip with automatic time synchronisation (NTP) and summer/winter time changeover has a programmable automatic function thanks to 2 Main (on/off) and 2 Follow (on/off) sockets. The power strip also convinces with the following features:

Integrated web server for operating system-independent operation with web browser (PC, notebook, tablet, smartphone)
Access protection by means of user name and password
2 independently switchable circuits with 16A load capacity
Device-friendly switching optimised for high inrush currents thanks to intelligent control electronics
Switching status change and display individually possible directly on the unit
Adjustable default switching state: off, on, last state
Integrated time control by means of flexibly programmable, time-dependent rules: Channel 1 and/or 2, switch on or off, any day of the week or exact date, exact time to the minute
Professional power measurement at channel On/Off 1 (Main): Measurement of active power and energy consumption with history display
IP address via DHCP (default) or static IP address possible
Monitoring of connected LAN devices (watchdog) with automatic shutdown or reboot function
Wake-On-Lan (WOL)
Permanent backup of configuration settings in flash memory
SW update in the browser without interrupting the switching outputs
Save and load configurations on the PC
Multi-user system with limited access authorisation
Very low power consumption of < 0.9W (sleep mode, relays switched off)
Supported protocols HTTP, DHCP, UPNP, SNMP, TFTP, SMTP, SYSLOG
Cable designation: H05VV-F 3G1.5

Technical data

Cable designation: H05VV-F 3G1,5
Cable length: 3 m
Height: 49 cm
Length: 7 cm
Weight: 1 kg
Width: 10 cm
Colour: black
Usage: Household
Type of fastening: Fastening with screw
With surge protection: No
Max. electr. load capacity: 3500 W
With residual current circuit breaker (RCCB): No
Nominal input voltage: 230 V
Type of plug: Angle plug
Number of socket outlets total: 4
Socket outlet arrangement: 45°
USB type output socket: Not applicable
Degree of protection (IP): IP20
Suitable for outdoor area: No
Cable quality: PVC, PVC
Suitable for 19 inch rack mounting: Yes
Suitable for built-in mounting: Yes
With hand/ foot switch: No
With wireless control: No
Main Follow function: Yes

Scope of supply

Premium-Web-Line V3 Internet Extension Lead 19"

Downloads

All products are subject to technical changes
