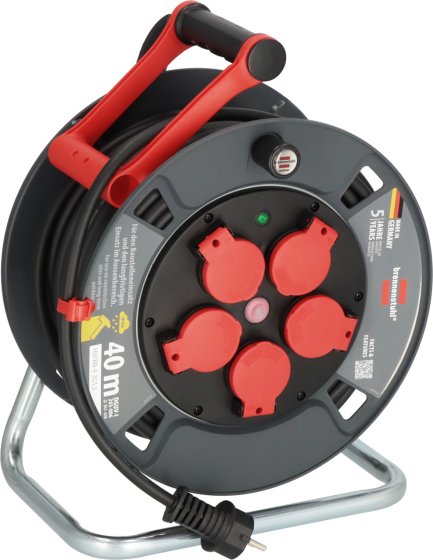

Professional Cable Reel 300 KU 4100 (40m cable in black, made of special plastic, construction site use and permanent outdoor use, Made in Germany)
Description
The Professional IP44 Cable Reel 300 KU 4100 with 40m cable length is ideal for use on construction sites and outdoors. The Cable Reel with 5 splash-proof protective contact sockets has overheating protection, indicator light in case of overheating and overload and a visual readiness indicator in the socket insert. The Cable Reel is equipped with the innovative "cablepilot" carrying handle, which allows free hands during transport, practical hanging and quick unwinding and rewinding. It also impresses with the following features:
- RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
- With twist handle for easy retraction
- With drum brake
- Protection class: IP44
- Cable length: 40m
- Cable designation: H07RN-F 3G1.5
- Cable quality: Rubber-neoprene
- Cable colour: Black
- Reel diameter: 300mm
- Power when wound up 230V: 1000W
- Power when unwound 230V: 3300W

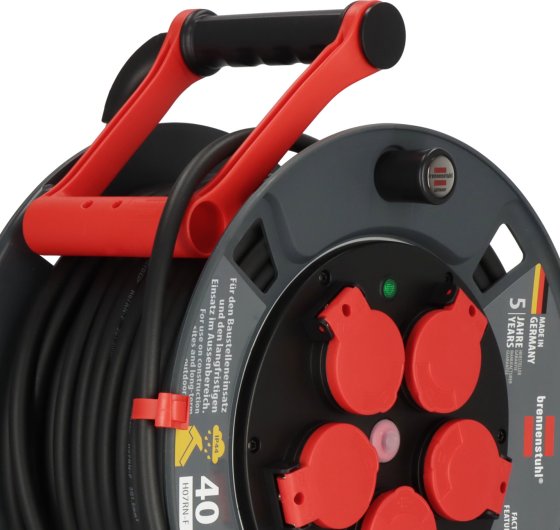

The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Technical data
- Cable designation: H07RN-F 3G1,5
- Cable length: 40 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3300 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 300 mm
- With ROL 'UP: No
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets:
- Number of earthed socket outlets: 5
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 39,50 cm
- Length: 20 cm
- Weight: 7,61 kg
- Width: 30 cm
Scope of supply
Professional Cable reel 300 KU 4100 IP44
Downloads
All products are subject to technical changes
