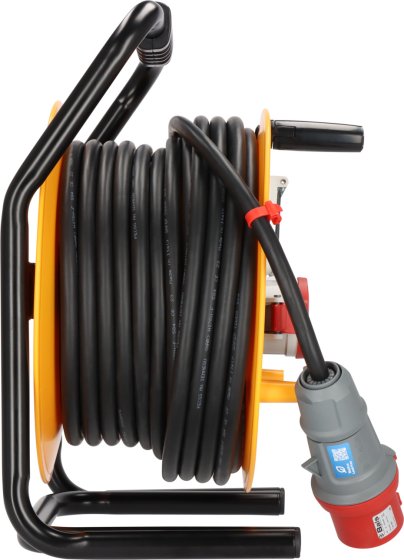

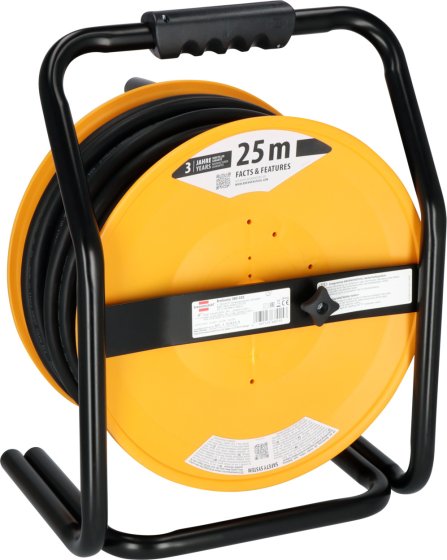

Professional Brobusta 380 CEE 2 FI Cable Reel for permanent outdoor use IP44 (Cable Reel 25m, with FI protection, Made in Germany)
Description
The Professional Brobusta cable drum with 25m cable length convinces with its quality and safety in all areas. The cable drum is ideal for permanent outdoor use. The black RN cable is approved for difficult construction conditions according to VDE 0100 part 704. The cable drum also convinces with the following features:
- CEE plug 400 V/32 A 5-pole
- 1 CEE socket 400 V/32 A 5-pole
- 1 CEE socket 400 V/16 A 5-pole
- 3 splash-proof protective contact sockets 230 V
- FI personal protection switch 30 mA
- 1 automatic safety switch 400 V/16 A
- 1 automatic safety switch 230 V/16 A
- Cable designation: H07RN-F 5G4.0
- Reel diameter: 380 mm
- Protection class (IP): IP44
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Technical data
- Cable designation: H07RN-F 5G4,0
- Cable length: 25 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 2500 W
- Capacity in uncoiled state 230V: 3500 W
- With residual current circuit breaker (RCCB): Yes
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 380 mm
- With ROL 'UP: No
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: No
- Number of CEE socket outlets: 2
- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 51 cm
- Length: 28 cm
- Weight: 16,70 kg
- Width: 38 cm
- Capacity in coiled state 400V 16A: 5800 W
- Capacity in uncoiled state 400V 16A: 11000 W
- Capacity in coiled state 400V 32A: 5800 W
- Capacity in uncoiled state 400V 32A: 22000 W
Scope of supply
Professional Brobusta CEE 2 FI IP44 cable reel
Downloads
All products are subject to technical changes
