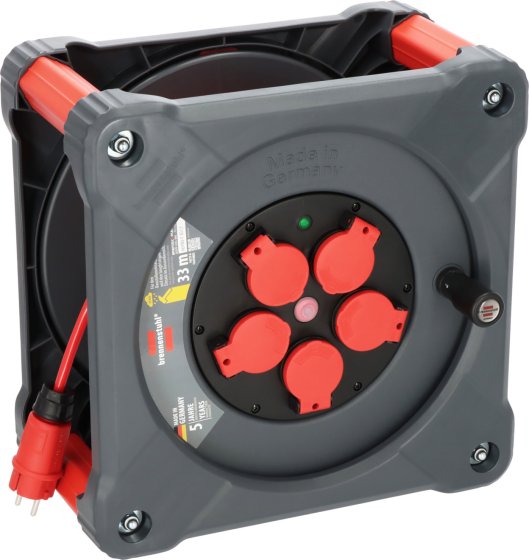

Professional cable reel KA 3110 5 with all-round roll-over protection (33m H07BQ-F 3G1.5 cable, construction site use and permanent outdoor use, cable cold-resistant to -40 °C, 5 protective contact sockets, Made in Germany)

new

Article number 9201330210

EAN 4007123687534

Cable reel with 33m cable length (H07BQ-F 3G1.5) and all-round roll-over protection - for construction site use in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
Sturdy cable reel with robust BQ cable: extremely abrasion-resistant, roll-over resistant and extremely cut and tear resistant - it is also acid and oil resistant, weather and microbe resistant and cold resistant down to -40 °C
Cable reel with 5 protective contact sockets (splash-proof, with self-closing lids) and extra robust protective contact plug
Housing and drum material made of a plastic-rubber mixture - extremely shock and impact resistant and suitable for continuous use under the toughest conditions
Outdoor cable reel with overheating protection, indicator light for overheating and overloading and practical reel brake that prevents the cable from unwinding during transport

Article number 9201330210

EAN 4007123687534

33 m
50 m

Description

The Professional 33m cable reel with a housing and reel material made of a plastic-rubber mix is extremely shock and impact resistant. Thanks to the IP44 protection rating and the extremely abrasion-resistant and roll-over resistant BQ cable, it is also suitable for long-term use in the toughest outdoor conditions. Thanks to the all-round roll-over protection, the extension cable reel is stable on all four sides and also offers perfect cable routing on all four sides. The cable reel with 5 splash-proof protective contact sockets has overheating protection with an indicator light for overheating and overloading and a visual readiness indicator in the socket insert. The professional electric cable reel with carrying handles and plug garage on all four sides also impresses with the following features:

Large, sturdy folding swivel handle for effortless winding and unwinding of the cable
Reel body cold impact resistant down to -25 °C
With drum brake
Protection class: IP44
Cable length: 33m
Cable designation: H07BQ-F 3G1.5
Cable colour: red
Category 2 equipment (K2 DGUV 203-005): Used for rough operation with high mechanical, physical and chemical influences
Power when wound up 230V: 1000W
Power when unwound 230V: 3000W

Technical data

Cable designation: H07BQ-F 3G1,5
Cable length: 33 m
Cable quality: PUR (polyurethane), PUR (polyurethane)
Capacity in coiled state 230V: 1000 W
Capacity in uncoiled state 230V: 3000 W
With residual current circuit breaker (RCCB): No
Nominal input voltage: 230 V
With Bretec: No
Reel diameter: 320 mm
With CABLEPILOT: No
With carrying handle: Yes
Usage: Trade/ construction sites
Housing material: Plastic
With plug storage: Yes
Number of CEE socket outlets:
Number of earthed socket outlets: 5
Degree of protection (IP): IP44
Area of use: Outdoor
Height: 37 cm
Length: 22 cm
Weight: 6,03 kg
Width: 37 cm

Scope of supply

Professional construction site cable reel KA 3110 5
