Garant IP44 commercial/construction site cable reel for use on construction sites and permanent outdoor use (25 m cable in black, made of special plastic, Made in Germany)
Description
Description
The Garant IP44 commercial/construction site cable reel in the colour blue has a 25m long cable. The cable reel is ideal for use on construction sites and outdoors. It has a twist handle for easy reeling and also boasts the following impressive features:

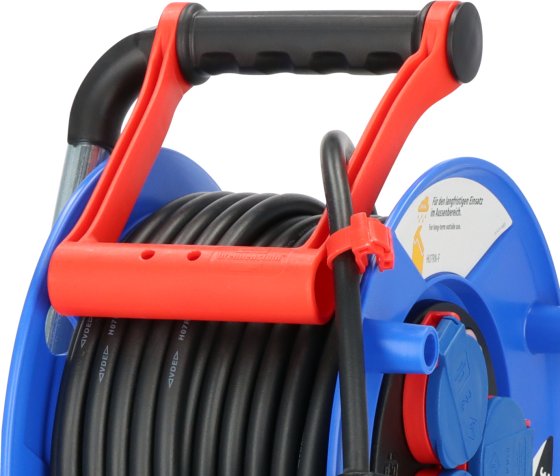

- Innovative ‘cablepilot‘ carrying handle for perfect cable routing. Swings on both sides and enables convenient carrying and hanging
- RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
- Protection class IP44
- Cable length 25m
- Cable designation H07RN-F 3G1.5
- Cable quality rubber-neoprene
- Cable colour black
- Cable drum diameter 240mm
Cablepilot
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
Technical data
Technical data
- Cable designation: H07RN-F 3G1,5
- Cable length: 25 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3300 W
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 230 V
- With Bretec: No
- Reel diameter: 240 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets:
- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 34 cm
- Length: 19 cm
- Weight: 5,05 kg
- Width: 25 cm
Downloads
Downloads
Accessories
Accessories
All products are subject to technical changes
