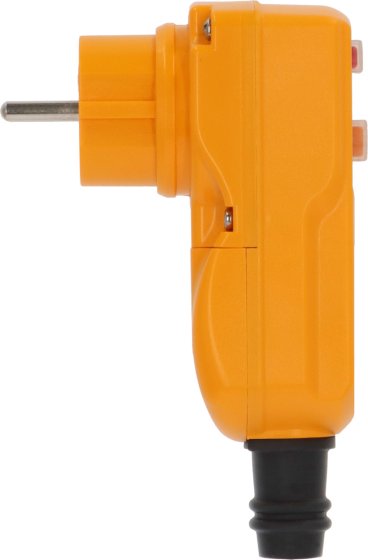

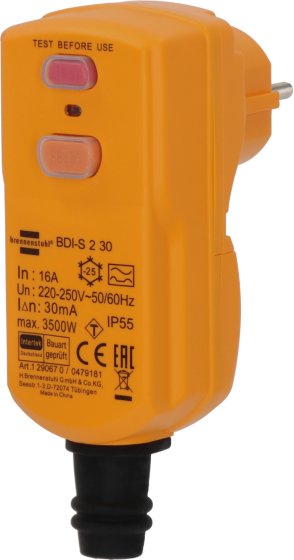

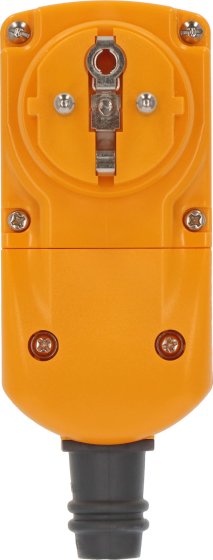

Personal Protection Plug with residual current circuit breaker and 2-pole disconnection (suitable for outdoor use, IP55)
Description
The personal protection plug is dustproof and jet-proof thanks to its IP55 protection rating, making it perfect for outdoor use. It serves to protect against dangerous electric shocks. Thanks to the personal protection plug, residual currents are immediately detected and disconnected from the mains in a flash. The residual current circuit breaker with two-pole disconnection also convinces with the following features:
- Suitable for 3G0.75², up to 3G2.5², cable.
- Voltage: 250 V
- Max. Current carrying capacity: 16 A
- Protective contact plug (type E and F)
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Technical data
- Height: 13,30 cm
- Length: 8,80 cm
- Weight: 0,17 kg
- Width: 5 cm
- Max. current carrying capacity: 16 A
- Nominal input voltage: 230 V
- Housing material: Plastic
- Degree of protection (IP): IP55
- Area of use: Outdoor
