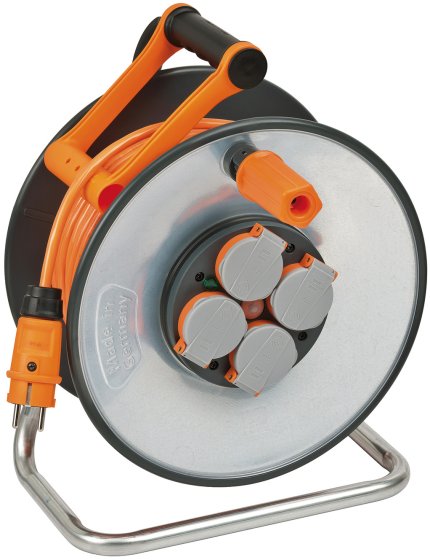

- Reel body make of steel plate, insulated front and back for heavy duty use.
- Innovative and ergonomic cable guide handle "cable pilot" for perfect cable-management during winding. Handle commutes on both sides and allows easy carrying and cable storage. For right and left handed easy to rewind.
- Large, sturdy fold-down turning handle rolls cables in and out effortlessly.
- Impervious to gasoline and oils.

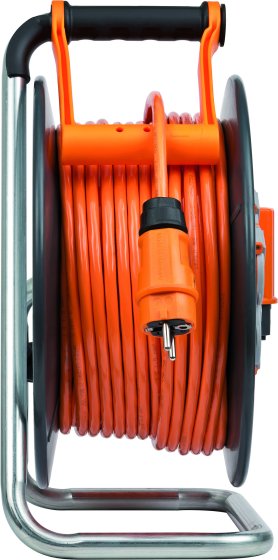

- RN cable is very robust, oil resistant and especially suited for professional use and on site.

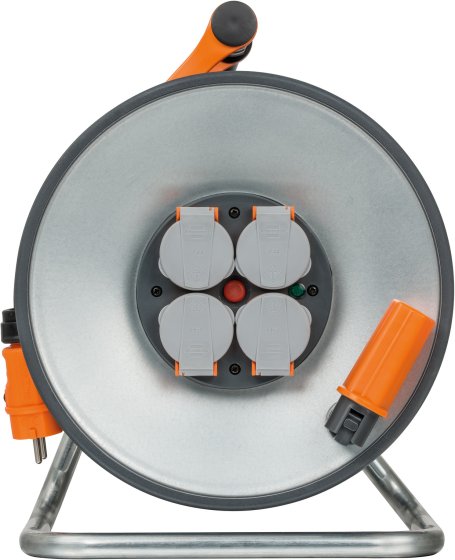

- 4 water-jet protected earthed socket outlets with self-closing protective caps.
- With extra robust earthed plug.
- With thermal cut-out protection against overheating.
- With visual readiness indicator in the socket insert.
Technical data
Technical data
- Cable designation: AT-N07V3V3-F 3G2,5
- Cable length: 33 m
- Cable quality: BREMAXX, BREMAXX
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Sheet steel insulated
- With plug storage: Yes
- Number of earthed socket outlets: 4
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 40 cm
- Length: 31 cm
- Weight: 8,70 kg
- Width: 22,50 cm
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3000 W
- Reel diameter: 290 mm
