Professional SteelCore Cable Reel IP44 (professional extension reel with 25m H07RN-F 3G2.5 cable, construction site use and permanent outdoor use, reel body cold-resistant to -25 °C, 4 protective contact sockets, Made in Germany)

new

Article number 9192250110

EAN 4007123687633

Cable Reel 25m (H07RN-F 3G2.5) with a reel body made of sheet steel with protective insulation on the front and rear - for use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and for permanent outdoor use
Innovative "cablepilot" carrying handle ensures perfect cable routing - Swings on both sides for convenient carrying and hanging up
Extension lead with robust RN cable (oil-resistant) and protection class IP44 - ideal for permanent professional use in outdoor areas, for example on construction sites

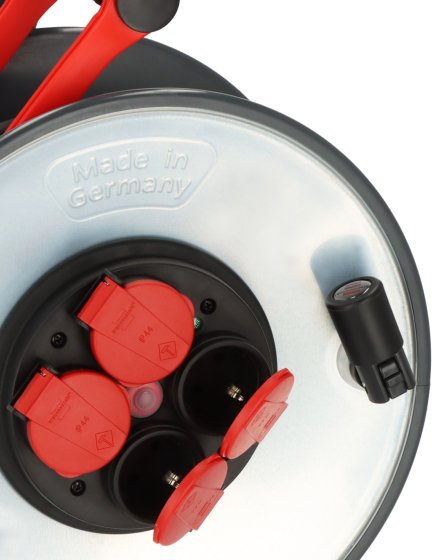

Extension cable reel with 4 protective contact sockets (splash-proof, with self-closing lids) and robust protective contact plug
SteelCore Extension Reel with sturdy folding rotary handle for effortless winding and unwinding of the cable and overheating protection with indicator light for overheating and overloading

Article number 9192250110

EAN 4007123687633

Description

The Professional 25m Cable Reel with a reel body made of sheet steel, which is cold impact resistant up to -25 °C, is perfect for permanent professional use in outdoor areas.The oil-resistant RN cable is extremely robust and insensitive to petrol. The cable drum with 4 splash-proof protective contact sockets has overheating protection with indicator light in case of overheating and overload and a visual ready indicator in the socket insert. The innovative "cablepilot" carrying handle ensures perfect cable routing, it allows for swinging on both sides and also for convenient carrying and hanging. The professional extension lead further convinces with the following features:

Reel body made of sheet steel, front and back insulated for robust operation
Large, sturdy folding rotary handle for effortless winding and unwinding of the cable
Protection class: IP44
Cable length: 25m
Cable designation: H07RN-F 3G2.5
RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
Cable colour: black
Category 2 equipment (K2 DGUV 203-005): Use for rough operation with high mechanical, physical and chemical impacts

Technical data

Cable designation: H07RN-F 3G2,5
Cable length: 25 m
Cable quality: Rubber-Neoprene, Rubber-Neoprene
Capacity in coiled state 230V: 1000 W
Capacity in uncoiled state 230V: 3000 W
With residual current circuit breaker (RCCB): No
With Bretec: No
Automatic cable winding: No
Reel diameter: 290 mm
With ROL 'UP: No
With CABLEPILOT: Yes
With carrying handle: Yes
Usage: Trade/ construction sites
Housing material: Sheet steel insulated
With plug storage: Yes
Number of CEE socket outlets: 0
Number of earthed socket outlets: 4
Degree of protection (IP): IP44
Area of use: Outdoor
Height: 39,50 cm
Length: 18 cm
Weight: 0 kg
Width: 29,50 cm
Additional cable length: 0 m

Scope of supply

Professional SteelCore cable reel SC 2200 IP44
